HS60 PCB (V3)
HS60 Layout
Estimated shipping date: March
Hot-swappable, with in-switch RGB LEDs, the HS60 really is the 60% PCB that does it all.
*PCBs will be matte black and fit standard 60% cases
Yiancar and mechboards.co.uk are back with another round of the HS60.

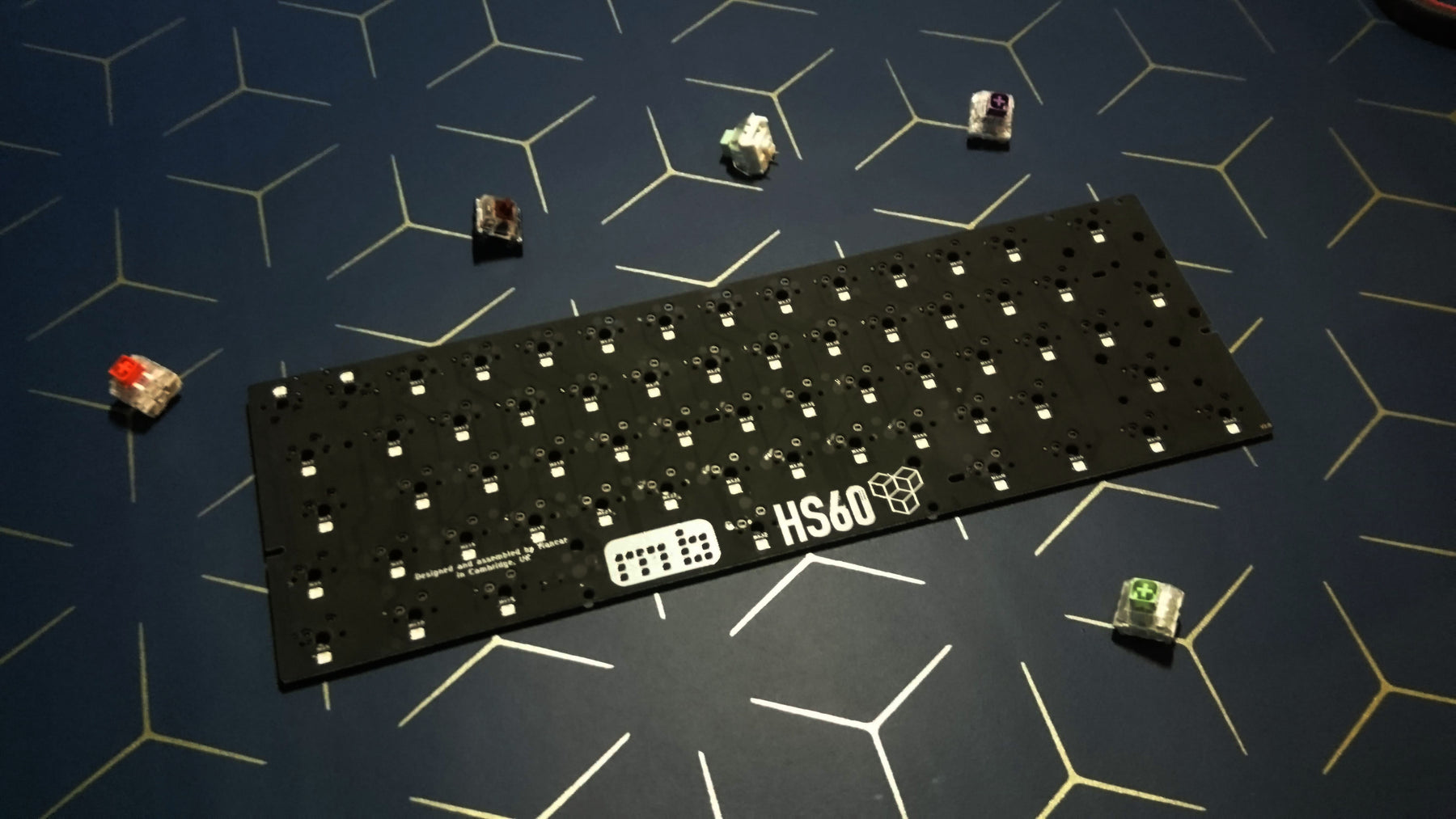

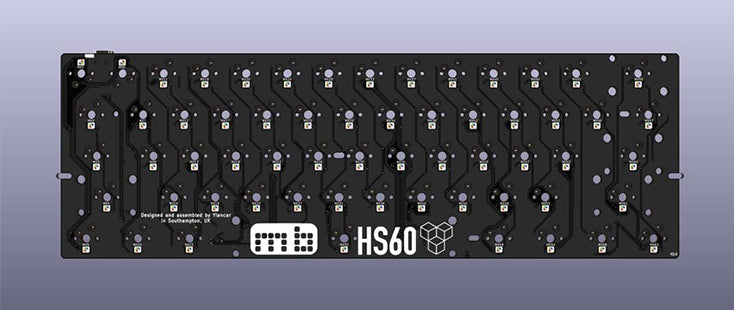

The third installment to the HS60 - A hot-swappable, per key RGB PCB - aims to be your one and only 60% PCB.
Featuring a USB C port rather than a USB Mini, this PCB aims to resolve previous rounds' LED issues, as well as offers pins for underglow.

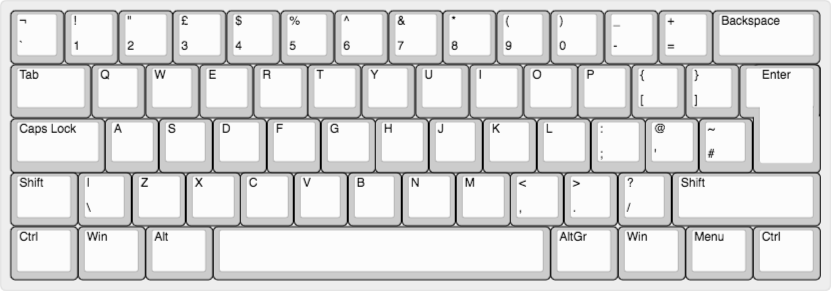

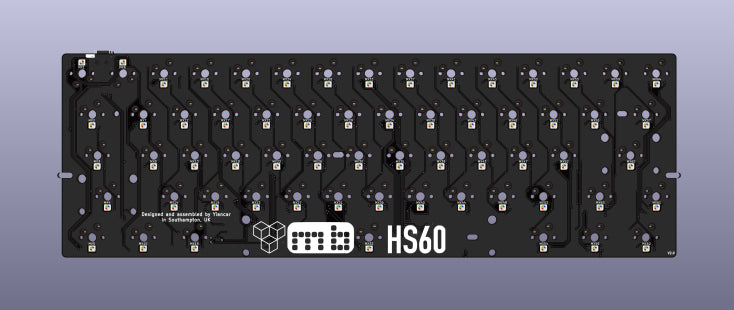

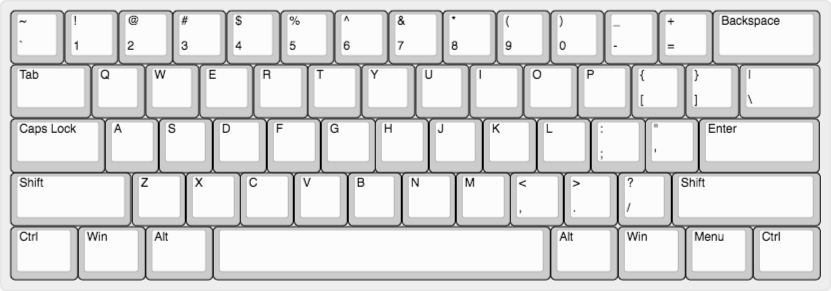

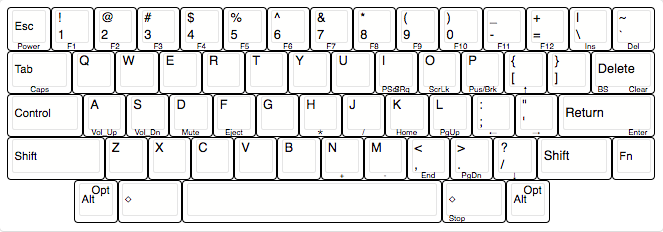

Like last time, there's three different layouts, ANSI, ISO, & HHKB (also WKL).
Hot-swappable
In-switch RGB LEDs
Underglow pins
ANSI, ISO, HHKB (WKL) layouts
ARM Processor
Fully assembled (soldering not required)
Configurable via config.qmk.fm
Matte black PCB
USB C port
Estimate Shipping - November 2019
Not in Australia?
Europe - Order from mechboards.co.uk
Canada - Order from mechkeys.ca
United States - Link coming soon!
Faq
Q: What do I need to complete this build?
A: PCB mount stabilisers (found here), switches (found here), keycaps (found here), and a case (not on Daily Clack).
Though not essential, a plate is recommended (Daily Clack doesn't stock those... yet)
Q: What happened to the upside down esc and 1 keys?
A: It’s due to the placement of the USB connector following the universal GH60 standard. The hotswap sockets can’t fit otherwise!
Q: Does it have underglow?
A: No, as the power draw for all the in-switch LED’s is quite high already. There are exposed pins to add underglow RGB strips, but this is experimental and up to the user.
Group Buy Policy
This item currently does not have an expected shipping date, however, this once an estimate production and shipping date can be determined this page will be updated.
Sometimes things can and do go wrong, which can change this date.
You are entitled to cancel and refund your preorder, which means you forfeit any preorder bonuses.
Additional products added with this item will be shipped when this product is ready to ship.
By purchasing this item, you acknowledge that you understand and agree what is written above.
We appreciate you sticking around to complete the buy as this will help us when ordering.
