Mammoth75 Keyboard Kit

DESCRIPTION

Purchase your extras here!

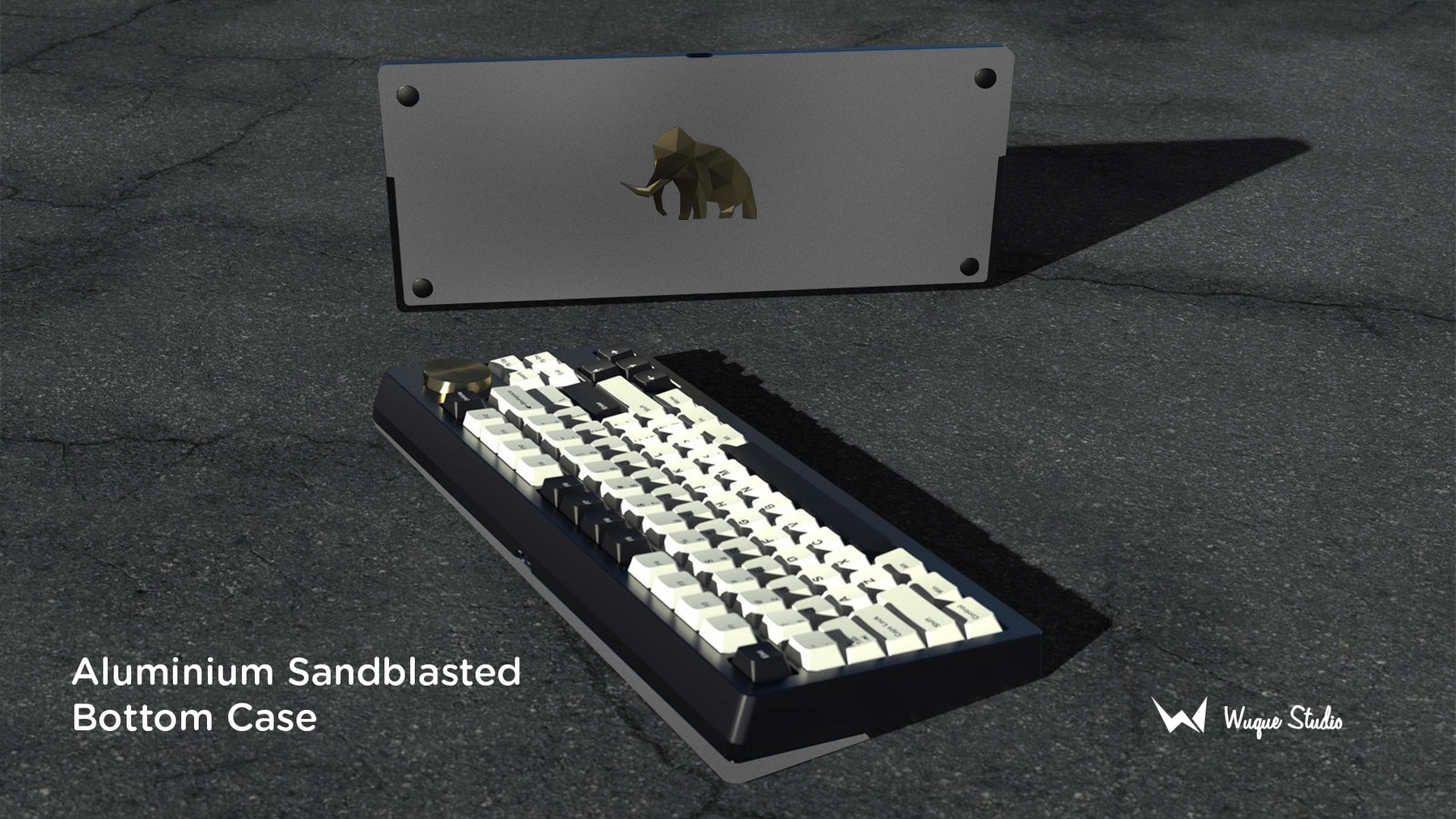

• Full Mirror or Sandblasted Bottom Case
• Sandblasted Diamond Cut Mammoth Weight

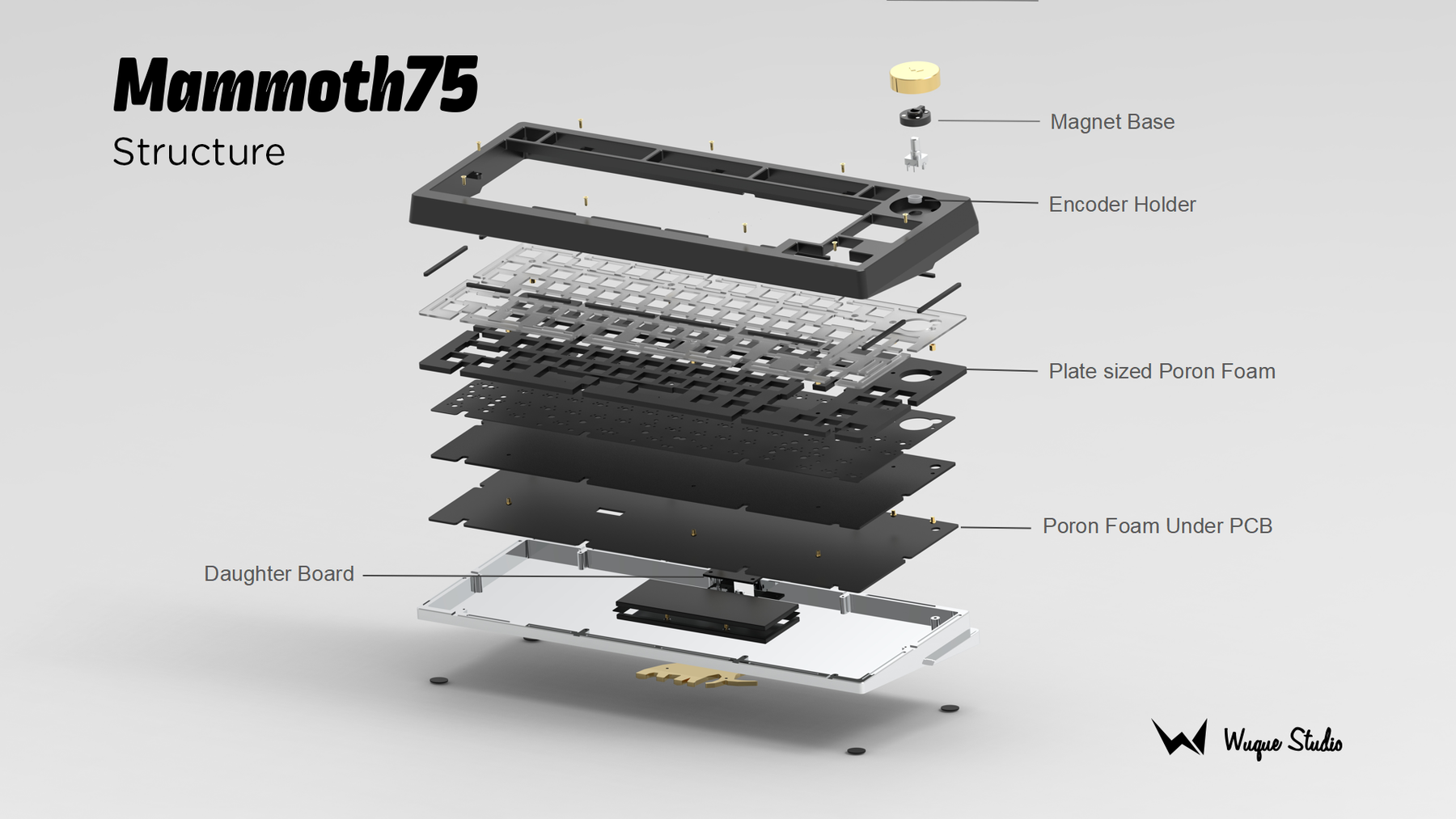

• Special Gasket Structure with Daughter board

The plate PORON foam is the same size as the plate, and it will touch the entire bottom case to achieve a stable typefeel. There is an adhesive PORON sheet pre-installed under the PCB for a deeper, more pleasant sound.

• Two magnetic knobs in each kit.

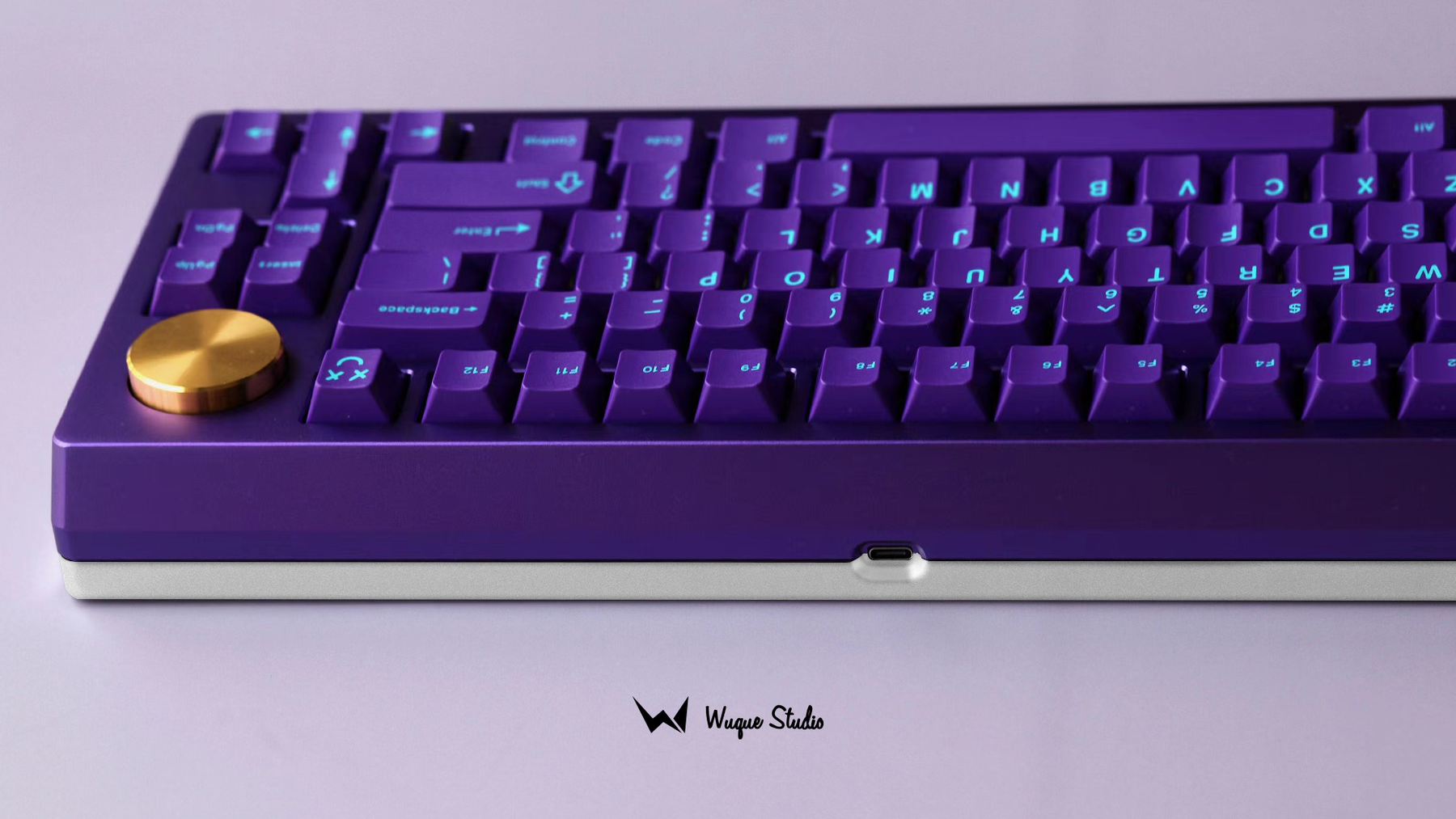

Each kit comes with an aluminum knurled knob with a CNC engraved pattern, and a plain brass knob with a radial brushed finish. Knobs have a magnetic base to make them much easier to swap out.

PCB Specifications:

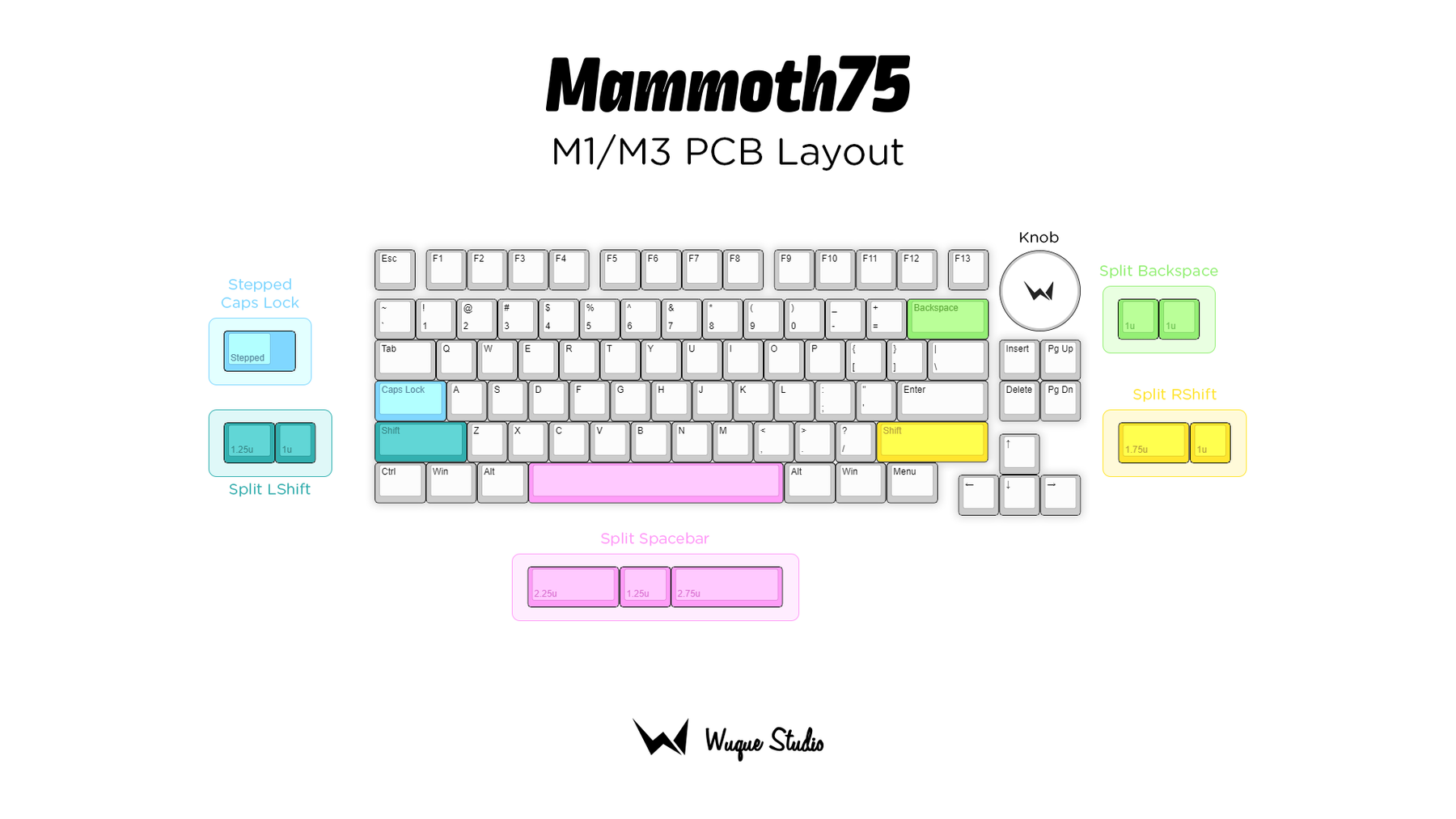

M1 PCB

Wired, hotswap, Supports QMK/VIA, split space bars, left/right split shift, backspace split, stepped/normal caps lock.

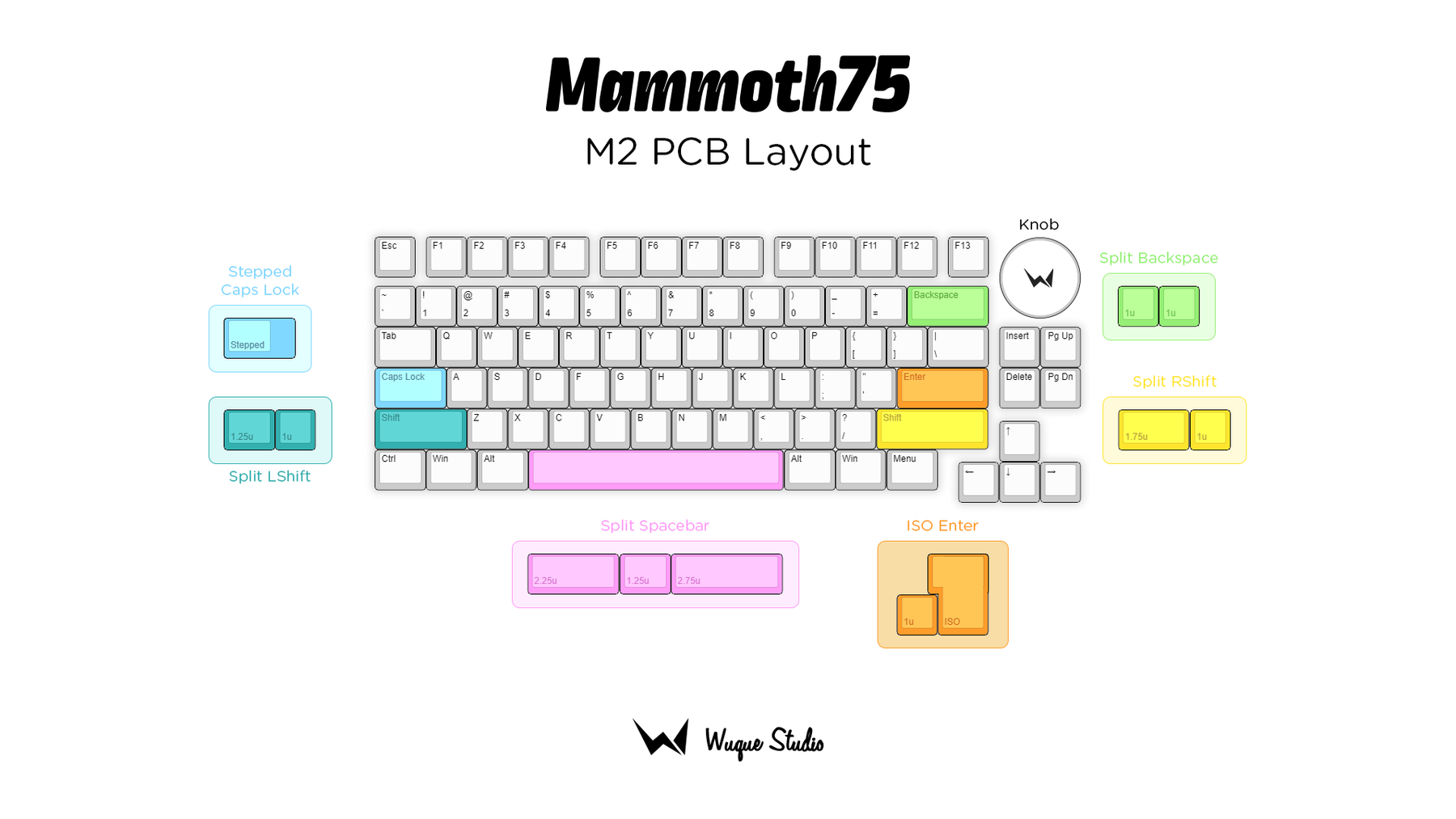

M2 PCB

Wired, soldered, supports QMK/VIA, split space bars, left/right split shift, backspace split, stepped/normal caps lock, ISO enter.

M3 PCB

Wireless, hotswap, Supports QMK/VIA, split space bars, left/right split shift, backspace split, stepped/normal caps lock.

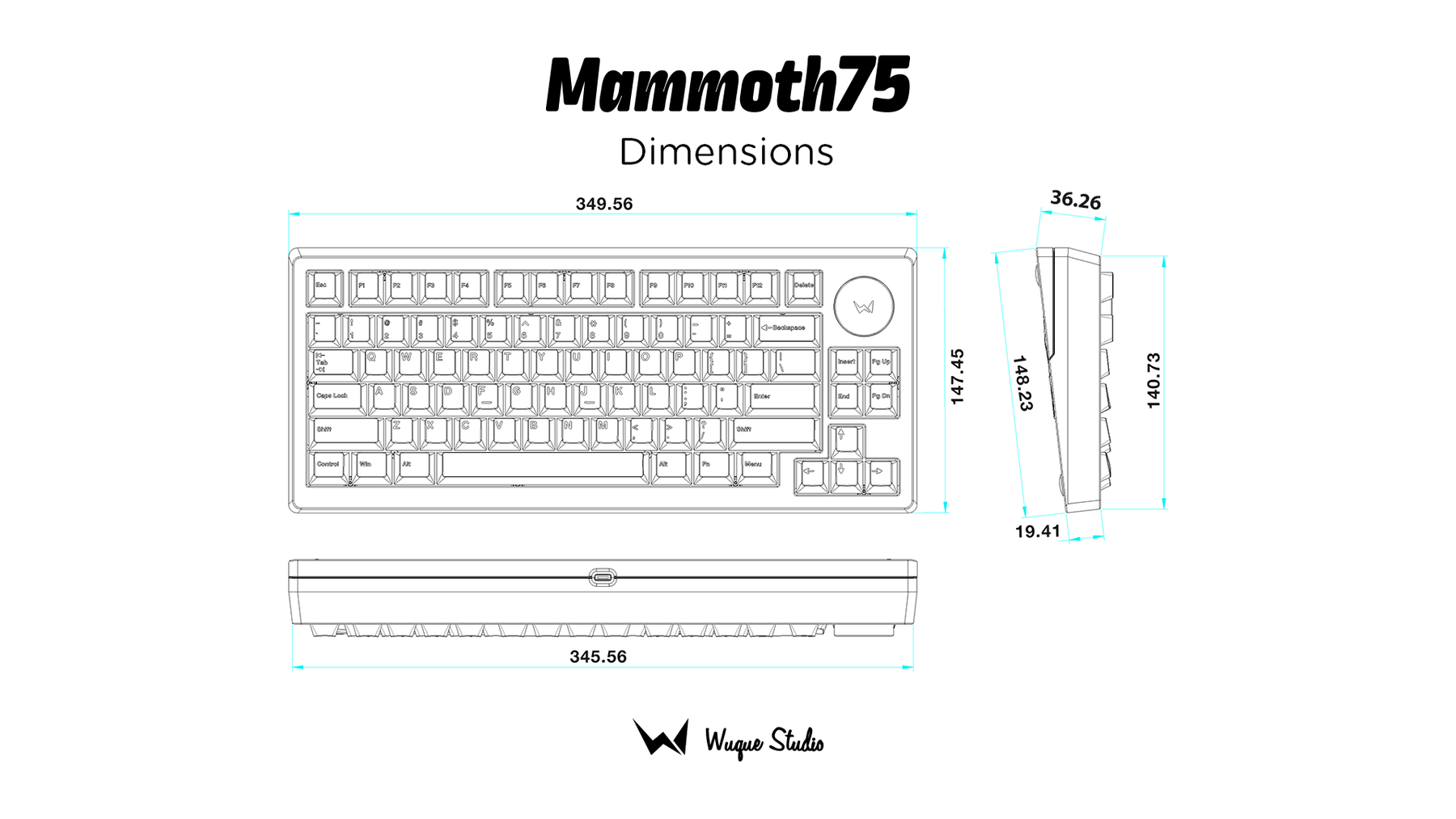

DETAILS

• Typing angle: 6.5 degrees

• Front height: 19.5 mm

• Top case material: Aluminum

• Bottom case material: Aluminum/Brass

• Mounting structure: Gasket Mount

• Full aluminum kit Weight (unbuilt): 2.0 kg, package weight: 3.5 kg

• Aluminum top case, brass bottom case kit weight (unbuilt): 4.2 kg, package weight: Up to 5.5 kg

INCLUSIONS

• Top Case (Aluminum)

• Bottom Case (Aluminum/Brass Mirror PVD, Aluminum/Brass Sandblasted)

• PC Plate

• WS Stabs 6+1

• PCB and daughter board

• PORON gaskets

• PORON dampener between plate and PCB

• PORON foam between PCB and switches

• PORON foam under PCB

• Gaskets

• 1x Aluminum knob

• 1x Brass knob

• Magnet base

• Encoder holder

• Screws and rubber feet

NOT IN AUSTRALIA?

DISCLAIMER

Mammoth75 Buid Guide
Mammoth 75 Quality Disclaimer

The images shown are used for illustrative purposes only. While we aim to accurately estimate and reproduce colours, there may be minor variations in the colour of the actual product because of the nature of dyes, environmental lighting, and differences in display output due to lighting and digital photography and colour settings and capabilities of monitors.
