CreateKeebs LuminKey75 Keyboard Kit

Barebones or prebuilt?

The 75% layout features F13 keys and arrow keys, making it more convenient to use directional keys and functional areas with the compact than 80% layout. The alpha area has an extra slope for a more comfortable typing experience. We also chose a horizontal encoder roller instead of the common vertical encoder knob, providing longer service life and a more coordinated look for the front of the keyboard.

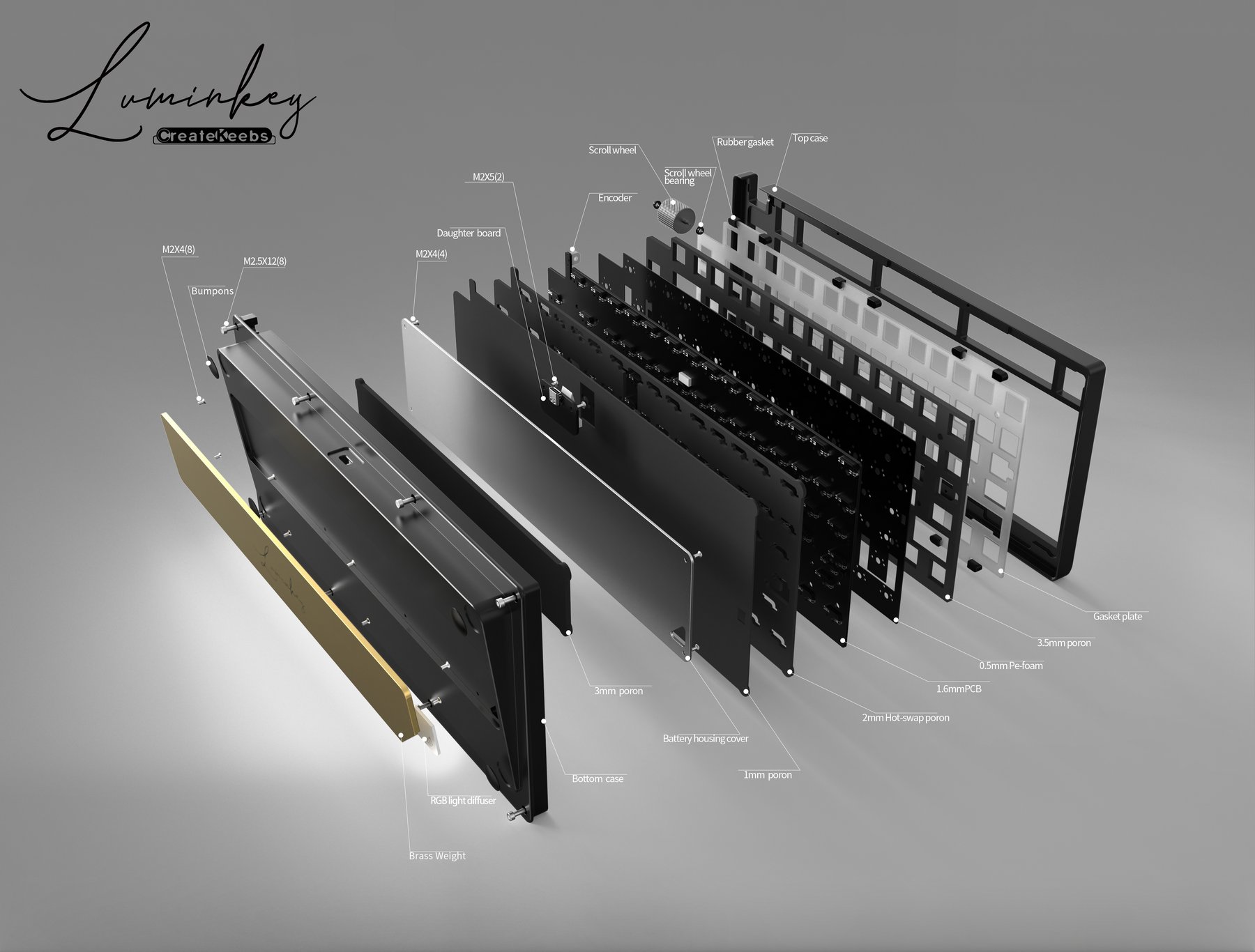

This time, we adopted a 1.6mm PCB without grooving. After repeated experiments, we decided not to do grooving treatment, as there is little difference in sound with or without grooving under the addition of ixpe and plate poron foam. However, grooving without the use of ixpe or plate poron will seriously affect the sound and result in poor consistency. The soft elastic feel of the gasket is provided by the Leaf spring and gasket socket on the PC plate. To ensure consistency of the typing sound, we designed an aluminum cover plate of the battery on the Bluetooth battery room, which can cover a large area of the bottom case.

Details
Size: 335*149*20mm
Input Angle: 7°
Material: CNC 6063 Aluminum Case, Brass Weight

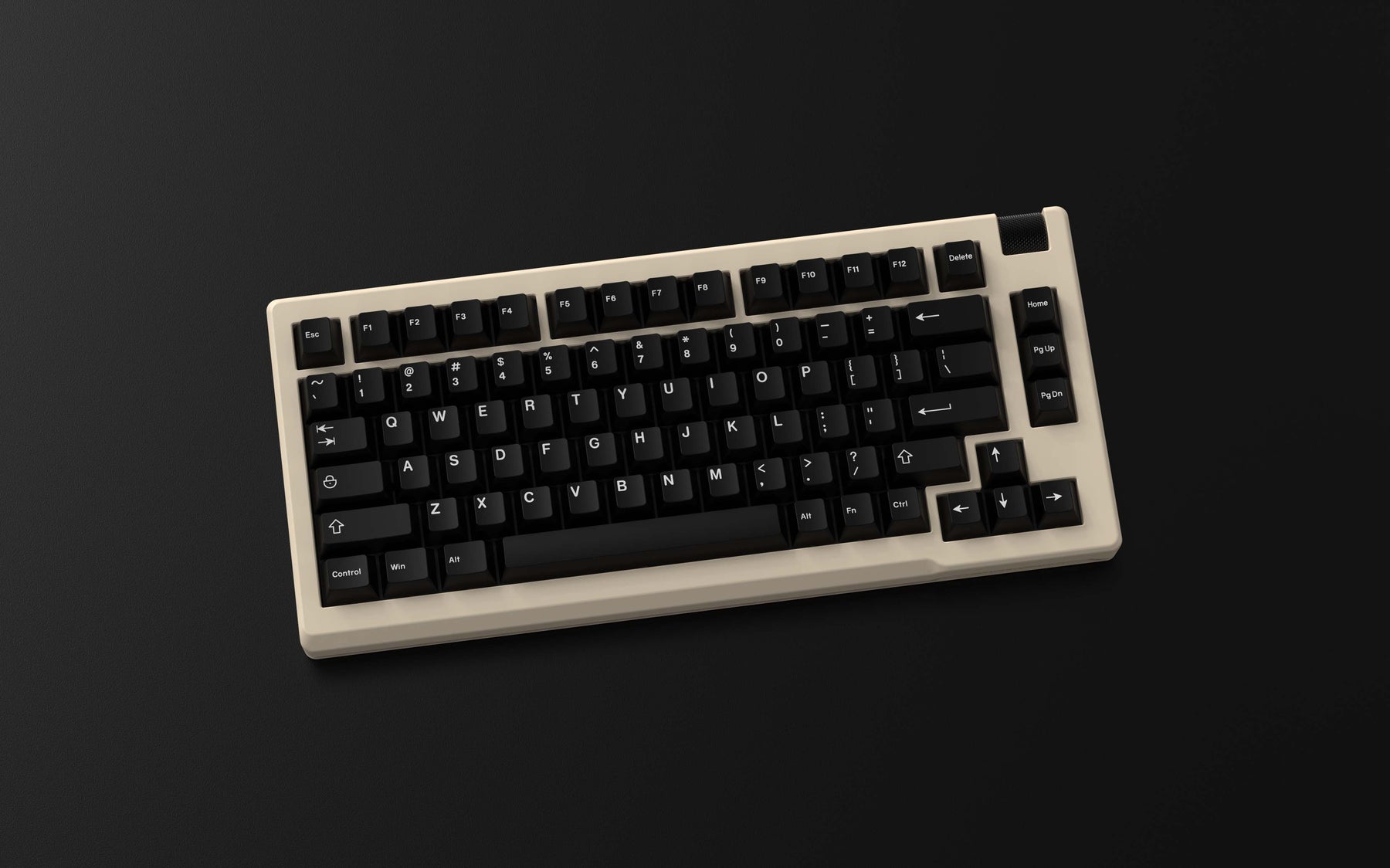

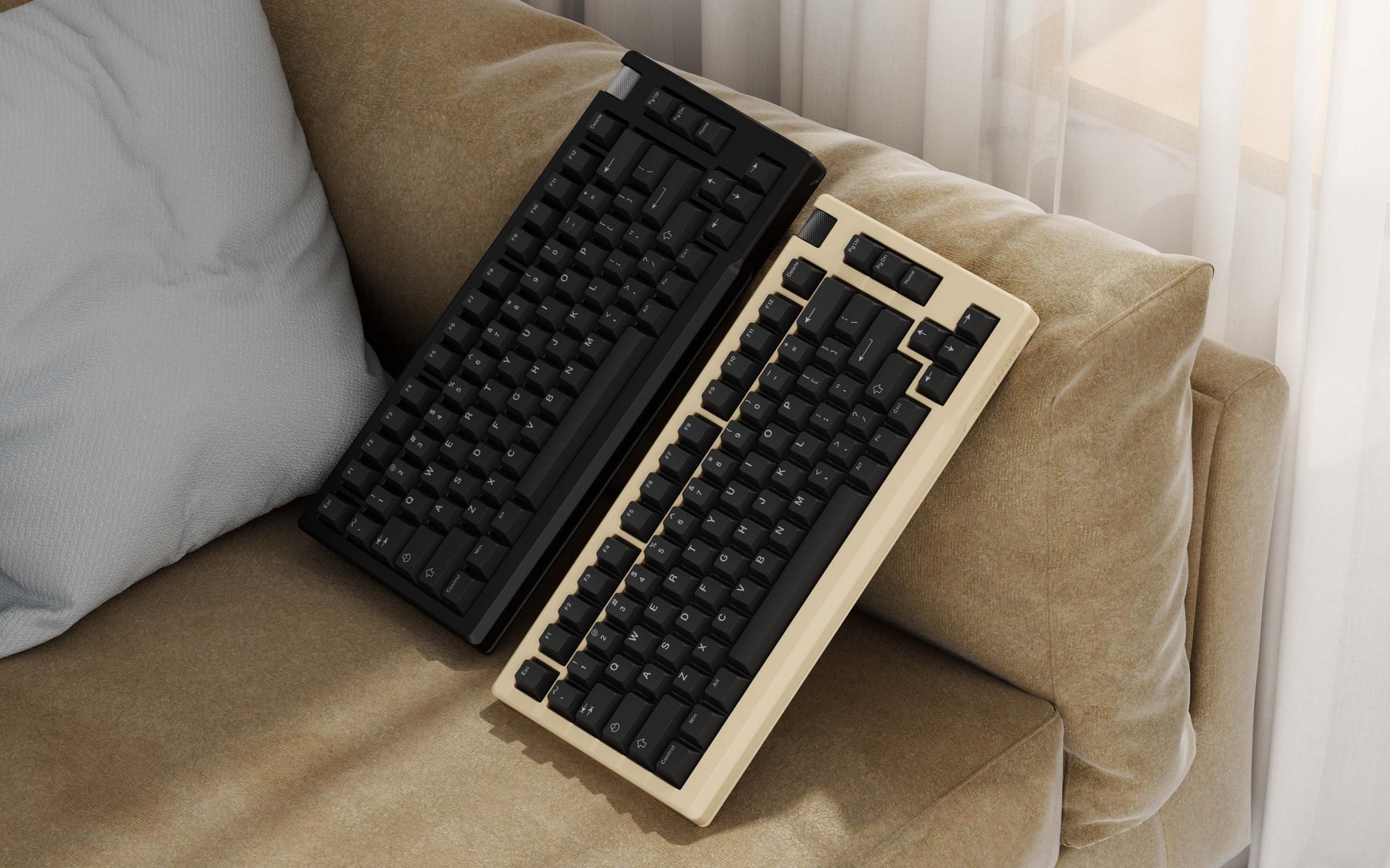

Colors: Dark Black(Anode)/ Cream White(Electrophoresis)
Layout: 75% TKL
PCB: 1.6mm Hot-swap
Plate: 1.5mm PC plate
Amount: Plate-Gasket Amount
QMK/VIAL Support
A Set of Stabilizer (PCB screw-in stabilizer)
USB type-C Data Cable

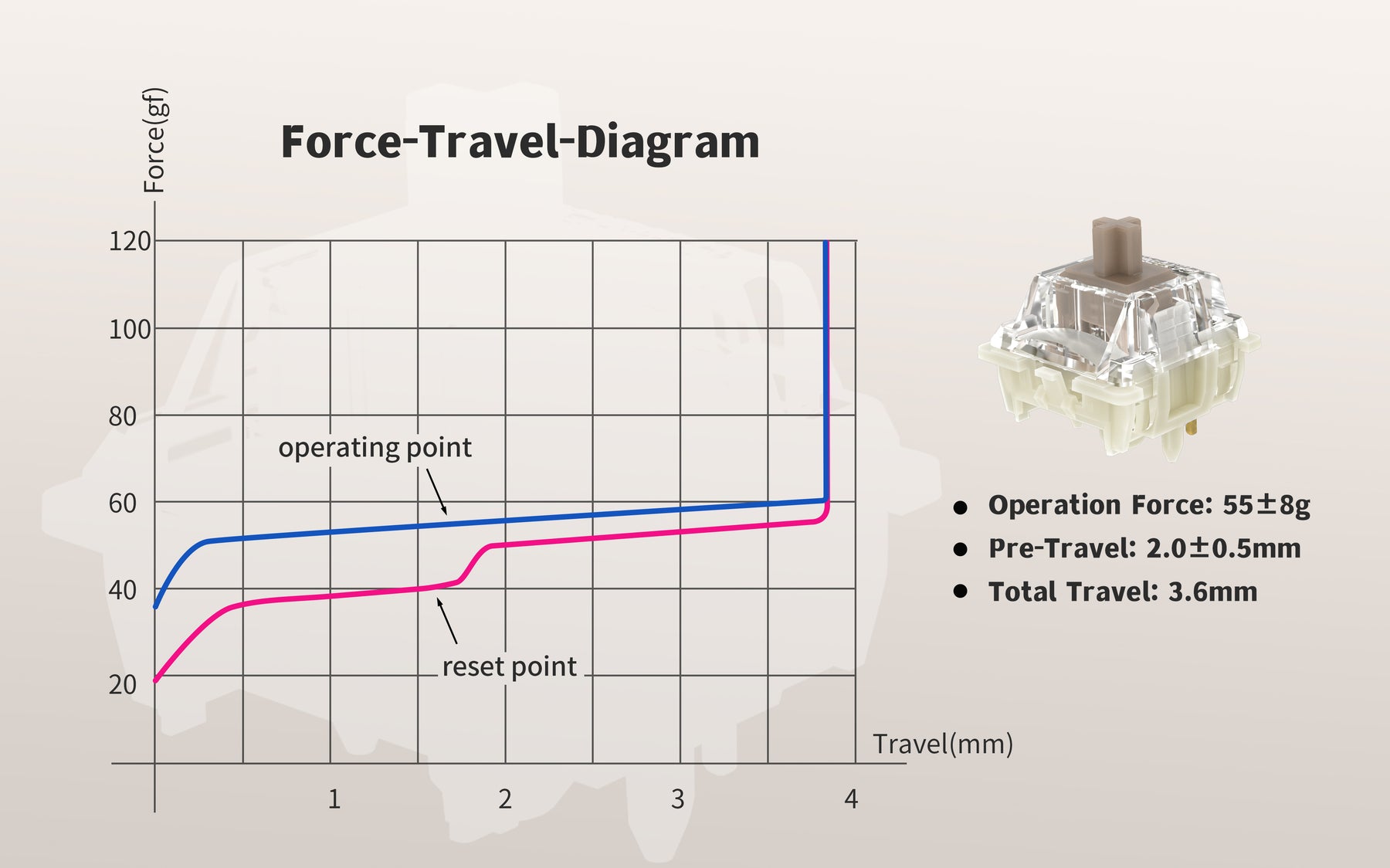

Gateron Baby Raccoon Linear Switches
Gateron Stabilizers
Enjoy-PBT Keycaps

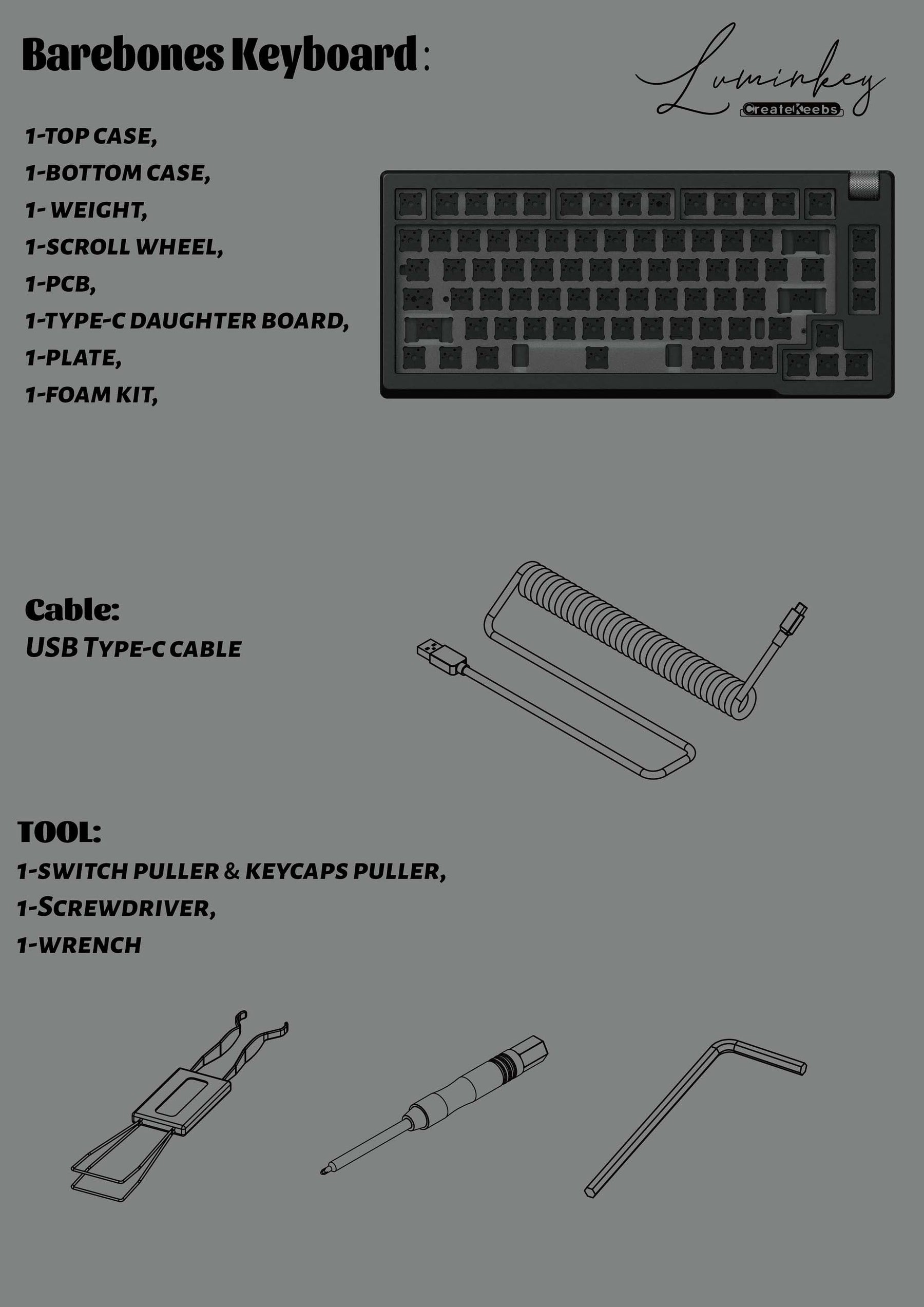

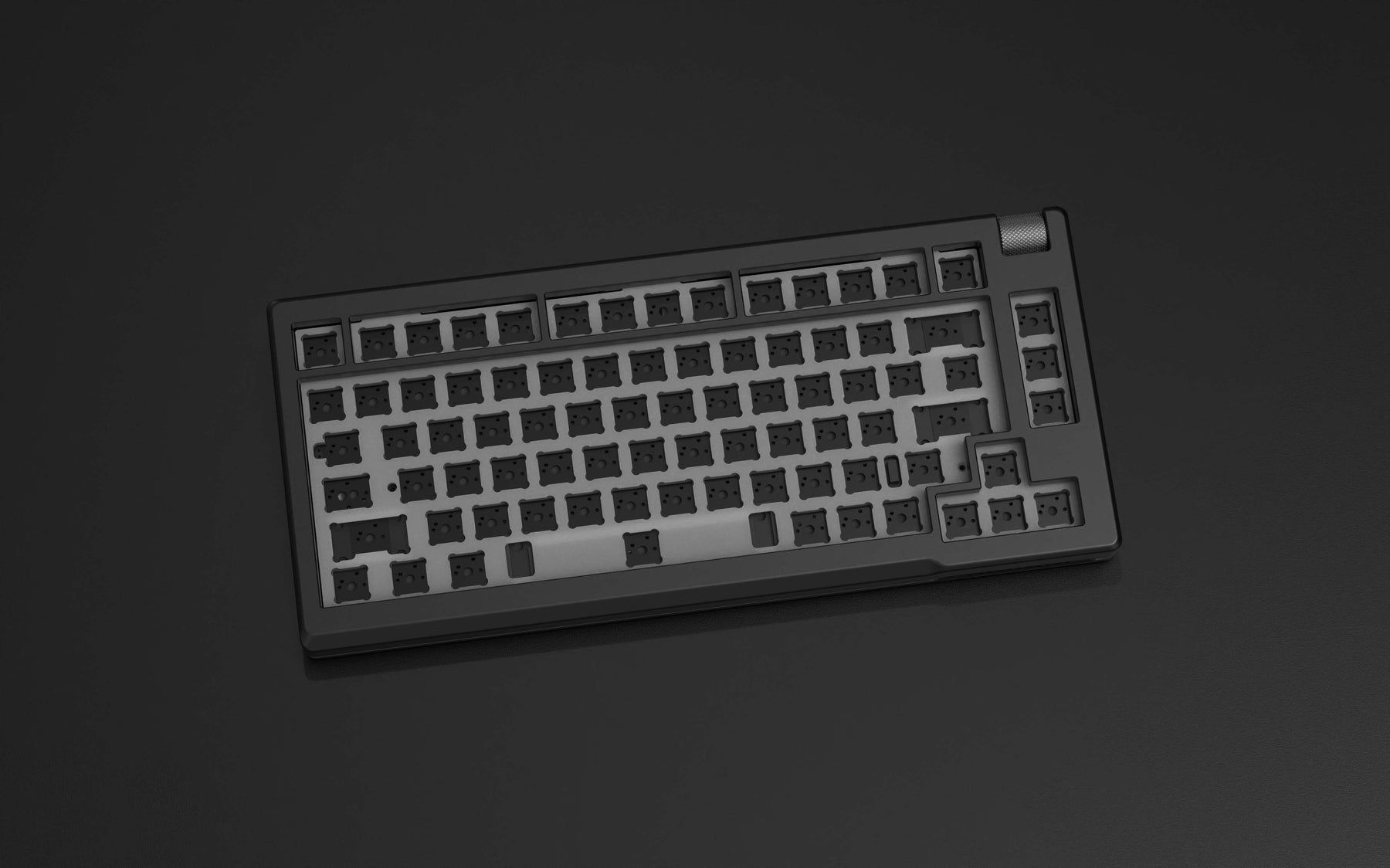

Barebones Kit Includes

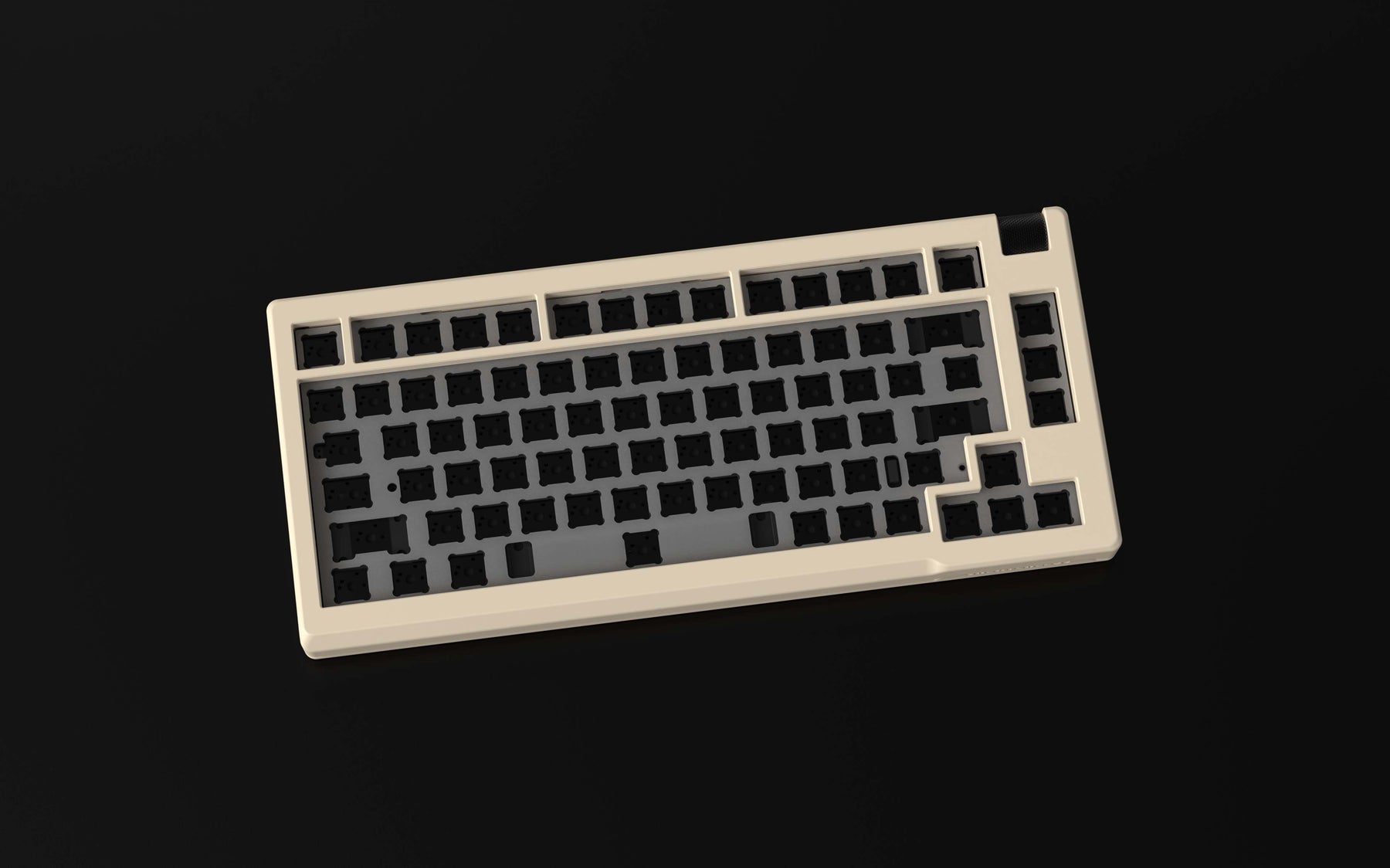

1*LuminKey Top Case
1*LuminKey Bottom Case
1*Scroll Wheel & Fix Parts
1*Brass Weight
1*PCB+ Daughter Board
1*Plate
1 Set of Foam
1*USB TYPE-C Data Cable
1*Switch Puller& Keycaps Puller
1*Wrench
1*Screwdriver

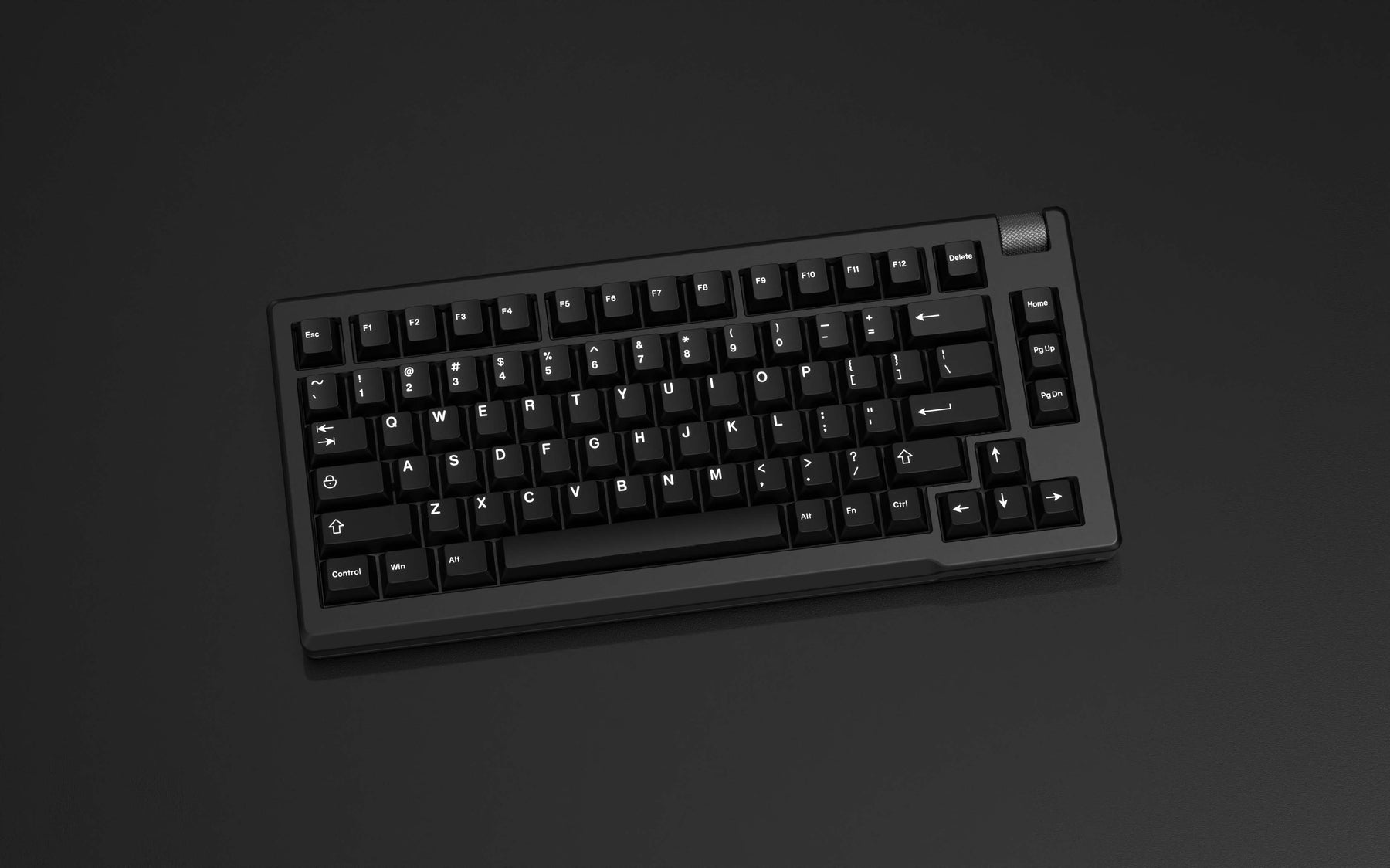

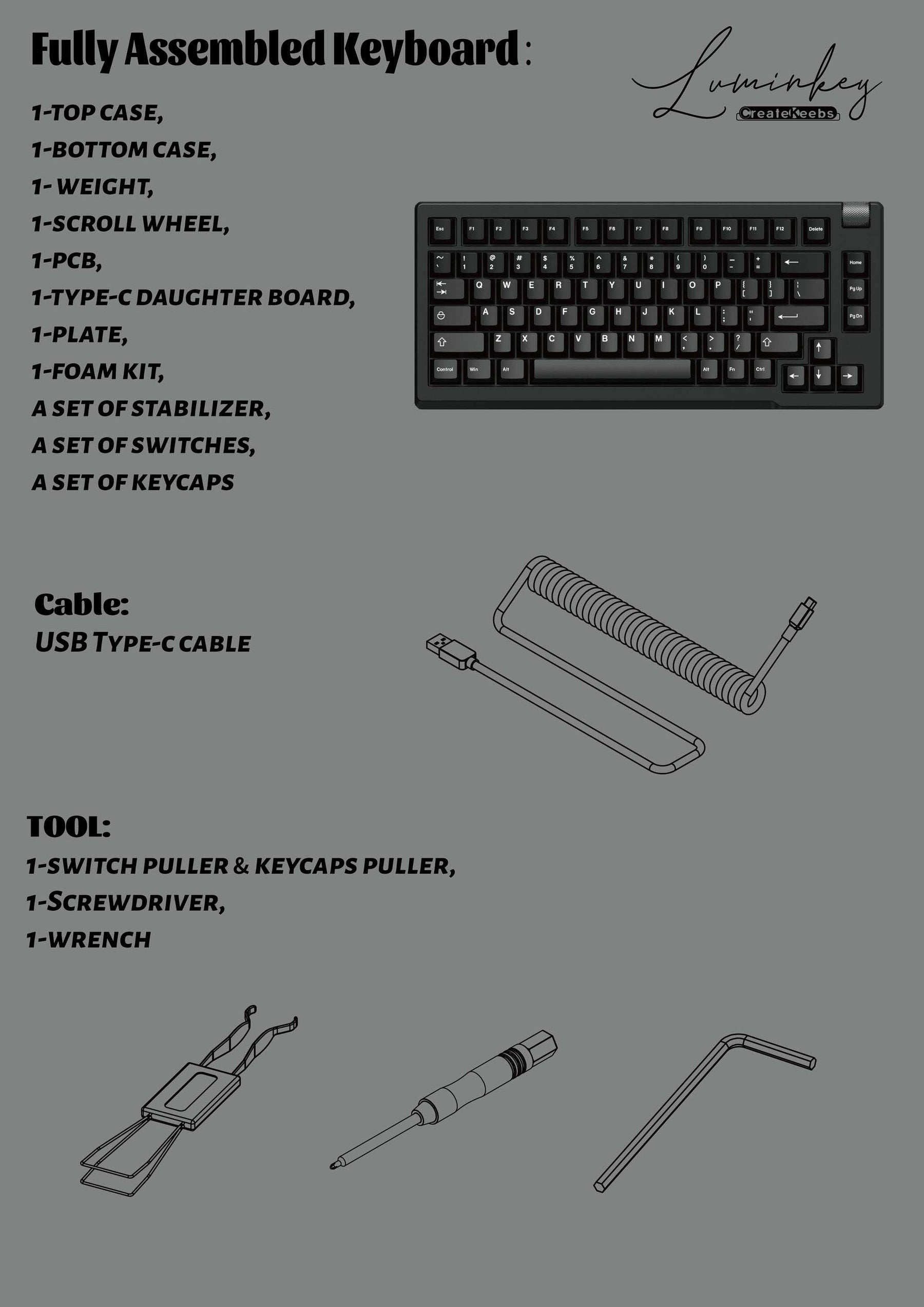

Fully Assembled Kit Includes
Barebones keyboard
1 set of Gateron baby Raccoon switches(equipped)+extra 1pcs
1 set of Gateron stabilizers
1 set of PBT Keycaps(equipped)+extra 4pcs
1*Switch Puller& Keycaps Puller
1*Wrench
1*Screwdriver
