H87a TKL PCB

  • Sale
  • Regular price $70.40

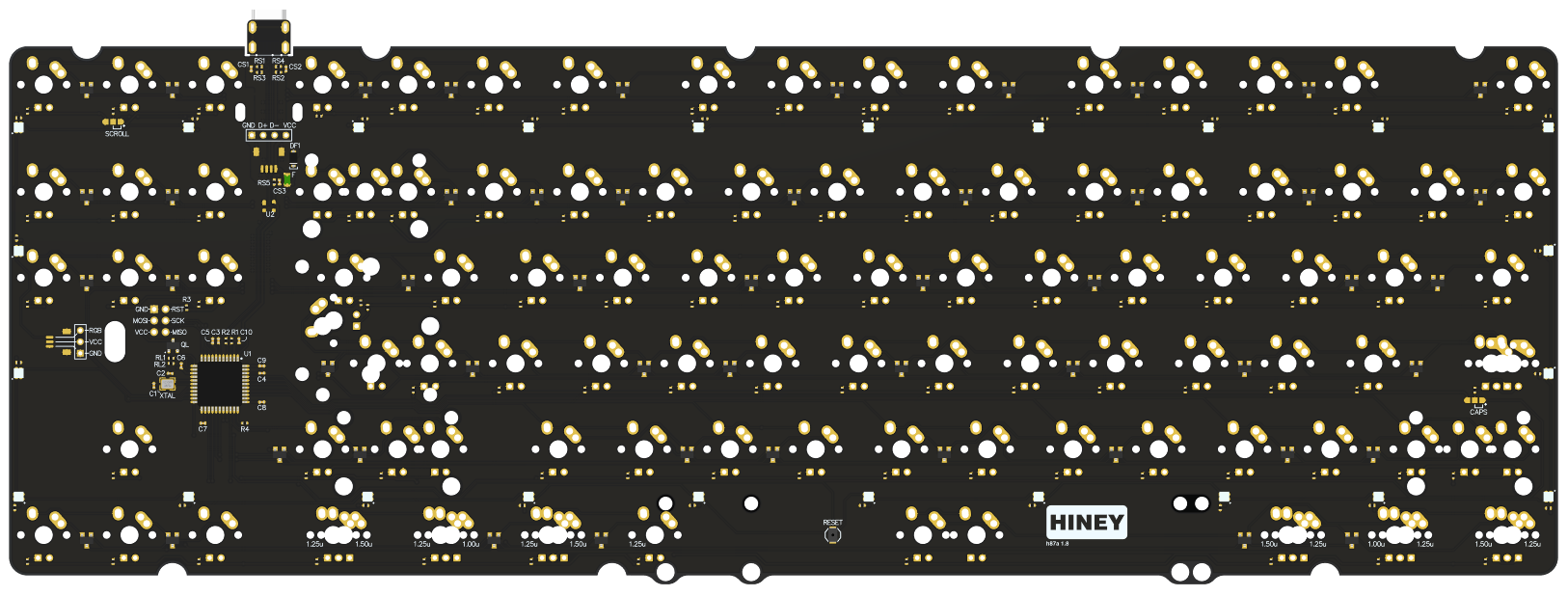

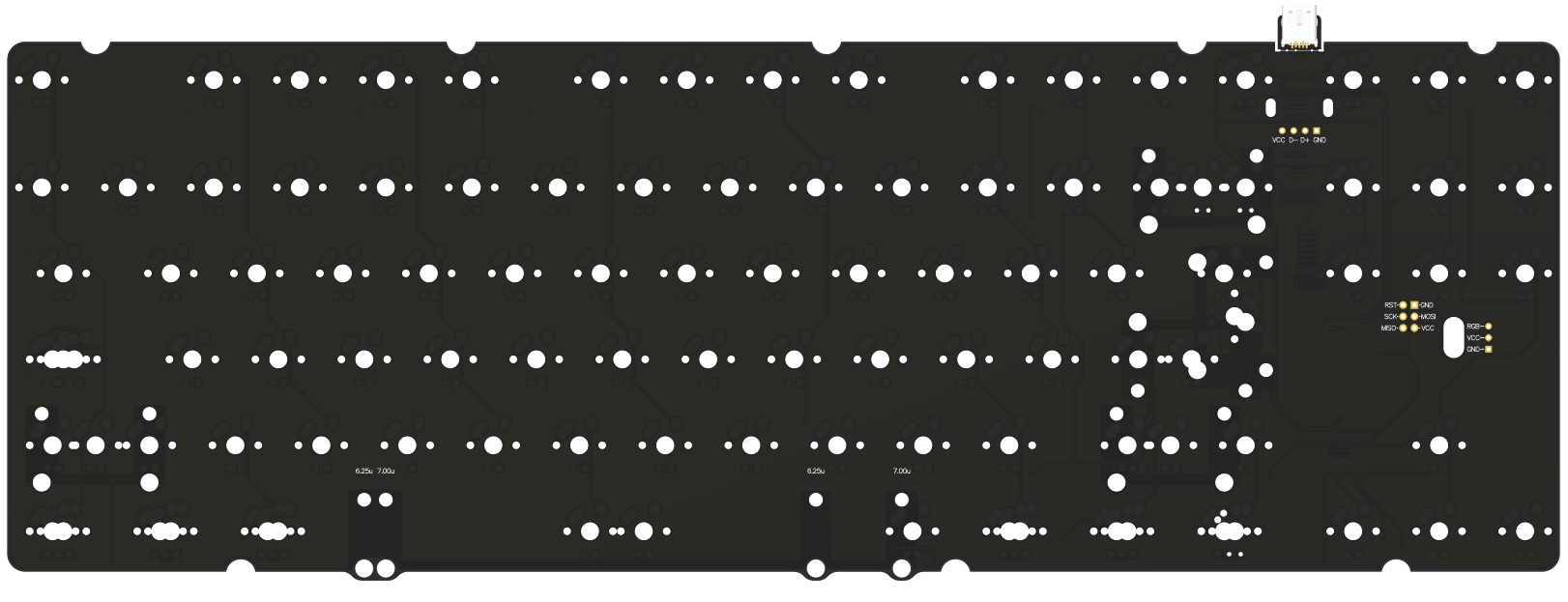

Latest round of Hineybush's H87A TKL PCB

Now featuring 3 designs - Normal, Thin (1.2mm thick!), and Alps!

The H87A is the ultimate TKL PCB. Made to fit, wherever a B87 or A87 PCB should fit. That means the USB placement is the same, as well as the footprint.

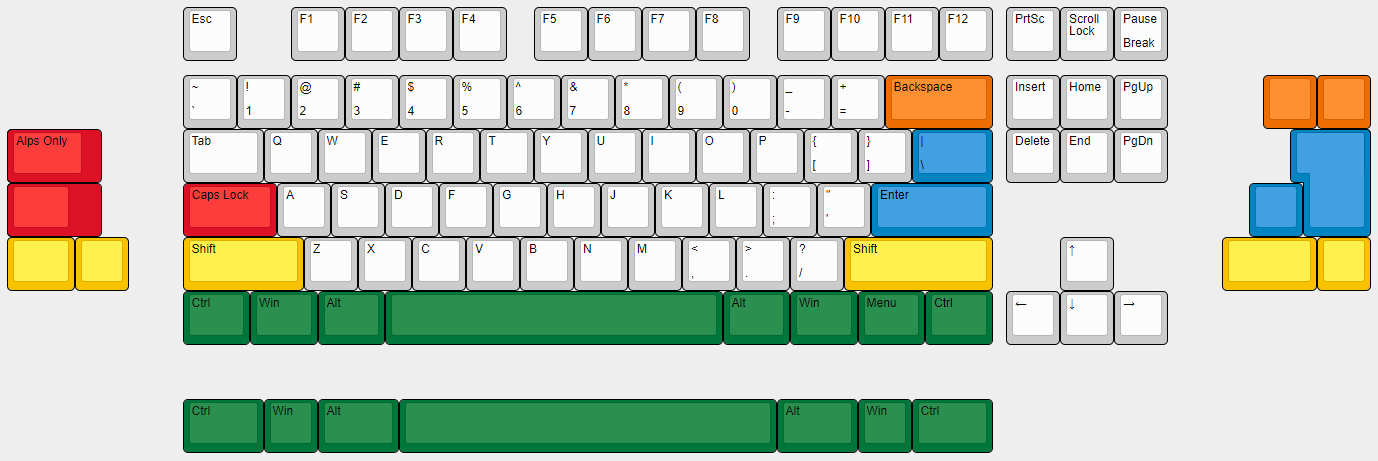

Heaps of compatibility featuring: Standard ANSI and WKL bottom rows, ISO enter, short right and left shifts, 2u backspace. Top-side Mini USB port. Spacebar stab is under the spacebar switch (south-facing).

A physical reset switch isn't present. So be sure to flash your board before you screw your case together!

Here's the github for programming

Here's the QMK configurator for easy programming

Here's the list of compatible keyboards. More will be added once they've been tested. There is no guarantee that this PCB will fit your board. If uncertain wait until someone else tries it.

Specs
TKL PCB
Normal 1.6mm thick (red)
Thin 1.2mm Thick (matte black)
Alps Variant (matte black)
Programmable via QMK.
RGB underglow
One-color in-switch LED (not available with Alps)
Powered by Atmega32U4 MCU
No physical reset switch
In-switch indicator lights
Pins to solder a daughter board on
Fully soldered and pre-programmed with a basic TKL map out of the box
SPI pins
Breakaway USB port for cases that use USB daughter boards
